Florida RF Labs 32-1085 RF power terminator 50 ohm / 50W
Main Page > Elektroniikka > Komponentit (aktiivi, passiivi, opto) > Passive components, resistors, capasitors > Resistors > RF tehovastukset RF power terminators

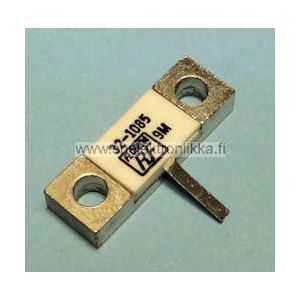

Tuote 106563. RF tehopääte RF power terminator Florida RF Labs 32-1085, 50 ohm 50W DC - 4.0 GHz. These products contain beryllium oxide. The material is between the heat sink and the chip, improving thermal conductivity. With the right use, the substance does not get out of the way. If you do not know about the substance, nothing will be seen while watching Wikipedia. Input soldering flange, GND in metal. The specs can be found online.
It is imperative that this product is sufficiently attached to a large heat sink and used with silicon or other heat.
With this terminal you can really make a very high quality inductance-free load. Or get the inductance always from the strings, etc. ... but keep the joints short.
