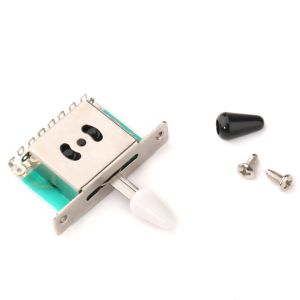

Mikrofoninvaihtokytkin 5WAYSW1 ruuvit ja 2 nuppia mukana. 5WAYSW1, 2 x 5 -asentoinen vaihtokytkin, kolmelle mikrofonille, vipu 1 mm x 3.4 mm, A0 ja B0 ovat common nastoja. Yksi suosituimmista mikinvaihtokytkimistä. 2 x 5 vaihto.
Position 1 = A0>A1 / B0>B1,
Position 2 = A0>A1:A2 / B0>B1:B2,
Position 3 = A0>A2 / B0>B2,
Position 4 = A0>A2:A3 / B0>B2:B3,
Position 5 = A0>A3 / B0>B3.
5WAYSW1, 2 x 5 -way switch for 3 -pickups, A0 and B0 are common contacts. Mounting screw spacing 41.27 mm (1.625"). 3 mm thread in mounting holes. Body depth 28.0mm (1.102").
Position 1 = A0>A1 / B0>B1,
Position 2 = A0>A1:A2 / B0>B1:B2,
Position 3 = A0>A2 / B0>B2,
Position 4 = A0>A2:A3 / B0>B2:B3,
Position 5 = A0>A3 / B0>B3.
Lever: 1mm x 3.4 mm (0.039" x 0.134"), supplied with two knobs and screws. With this switch you can connect pickups separately and also in parallel with center pickup.
