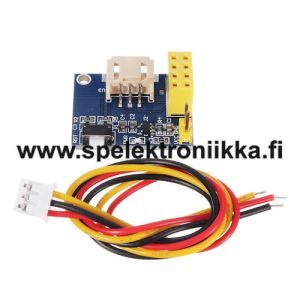

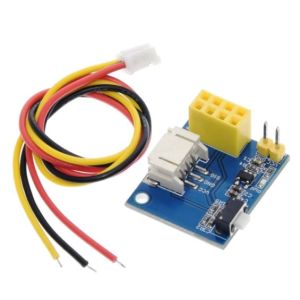

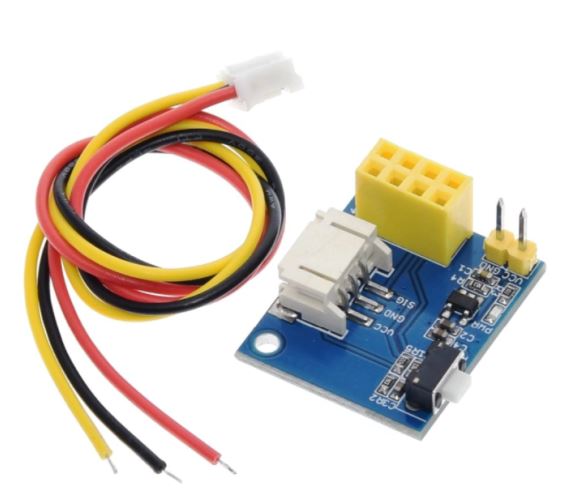

ESP8266-01 WS2812 liitoskortti (RGB)

Tuote 100540. ESP8266-01 WS2812 liitoskortti (RGB). Ajurit sisältävien LED:ien ohjauksiin. LED -nauhat, LED -renkaat jne ... Tämä on komponentti, ei valmis laite.

Täällä asiaa aiheesta:

https://www.youtube.com/watch?v=tKl5vnxCVcc

https://www.hackster.io/jayell/esp-01-mqtt-led-strip-patterns-834db7

Feature:

This is a WS2812 RGB LED control module based on ESP-01 / 01S. With it, you can easily control the WS2812 light bar / light ring. DIY own lighting control system. Support for Ard uino IDE programming.

Characteristic

* Master: ESP-01 / ESP-01S (This module does not include ESP-01 / ESP-01S)

* Control Pin: GPIO2

* Interface: 3Pin PH2.0 connector

* Operating Voltage: DC 3.7V-5V (Please note: The positive supply voltage VCC on the board is connected to the VCC on the WS2812 3PIN connector. Therefore, if your light bar/lamp ring is 5V powered, use DC 3.7V-5V power supply.)

* Support 3.7V lithium battery
