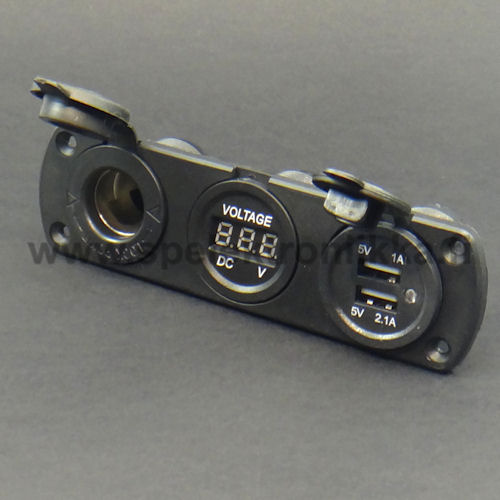

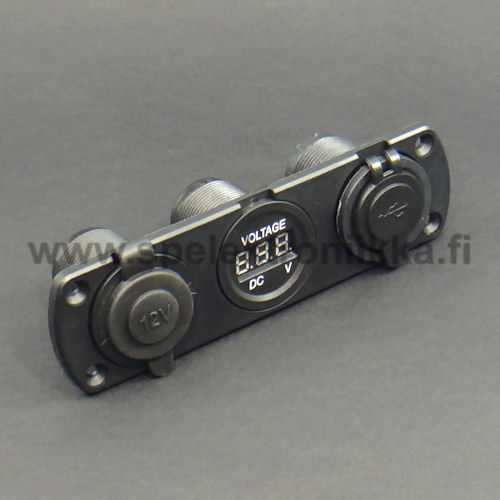

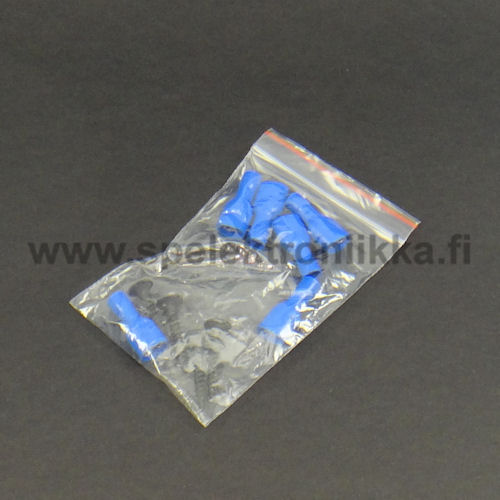

The product SMN23510. Multifunction panel for boat quad IP44 protection outputs Tup.syt./Voltage/USBx2. Digital display for voltage (red). USB outputs The total maximum power of the 5V / 1A and 5V / 2.1A outputs must be below 10W, ie you will not get 5V / 1A and 5V / 2.1A out of it at the same time. If the current consumption is exceeded, the switch will typically start to whine strongly and the voltage will drop, then remove the device at terminal 1A, for example. Auxiliary fastening connectors, 6 auxiliary connectors included. The panel can be completely disassembled and the locations of the meter and outputs can be varied as desired or even attached separately exactly where desired. Panel size approx. 40 mm x 150 mm. IP44 protection (splash protection). Input voltage (USB) 12VDC. The voltmeter measures voltages between 6 and 30VDC, no need for a separate battery, draws the current it uses from the voltage of the object being measured.

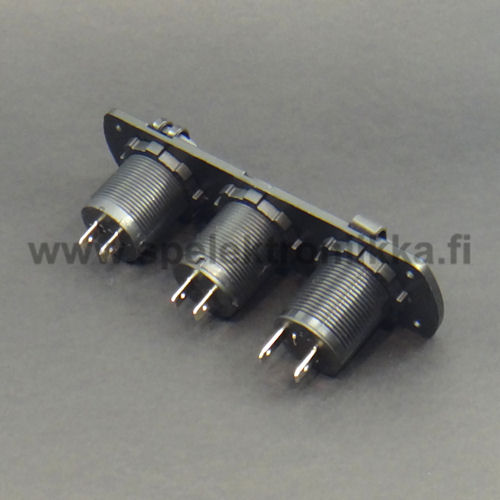

Mounting hole 29mm / device. The panel can be fastened at the corners with screws. If you install the meter or the outputs separately somewhere, you can get them through even a really thick plate because there are 30mm + dimensions of the abutments behind the panel. The threaded part itself is 26mm long.
