Tuote SBF242589. BFR520 NPN 9 GHz wideband transistor SOT-23. BFR520 Bipolar - RF Transistor, NPN, 15 V, 9 GHz, 300 mW, 70 mA, SOT-23.
High power gain
Low noise figure
High transition frequency
Gold metallization ensures excellent reliability.
RF front end wideband applications in the GHz range. Analog and digital cellular telephones. Cordless telephones (CT1, CT2, DECT, etc.). Radar detectors. Pagers and satellite TV tuners (SATV). Repeater amplifiers in fiber-optic systems.
Polarity: NPN
Collector-emitter voltage (Vce max): 15 V
Transition frequency (fT): 9 GHz
Collector current (Ic max): 70 mA
Dissipated power (Ptot): 300 mW
Mounting: surface

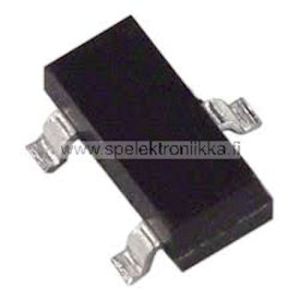

Package: SOT-23
Package type: plastic
For applications as low noise and high gain amplifier up to 1 GHz and general purpose up to 2 GHz
